Facebook Live Streaming
Facebook Live Streaming is a live video broadcasting feature that allows individuals, businesses, organizations, and event organizers to stream video directly to Facebook. It enables you to connect with your audience in real time, interact through comments and reactions, and share important moments as they happen.

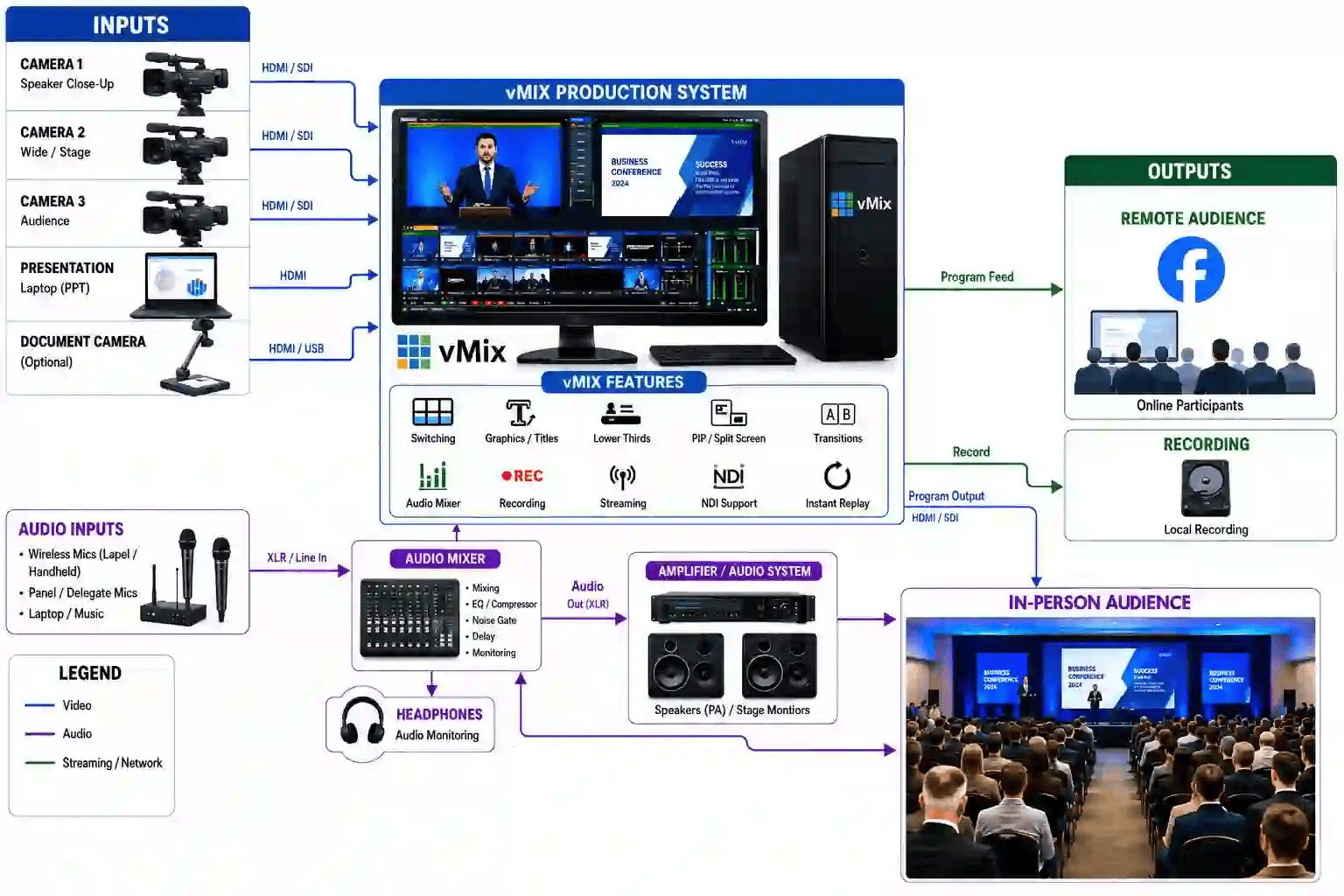

Facebook Live Streaming using vMix
1. Camera Inputs
Everything starts with the input devices.
Camera 1 – Speaker Close-up
- Focuses on the presenter.
- Used during speeches or panel discussions.
- Connected via HDMI or SDI.
Camera 2 – Wide Stage
- Captures the complete stage.
- Shows presenters, LED screens, podium, etc.
- Connected using HDMI/SDI.
Camera 3 – Audience
- Shows audience reactions.
- Useful for hybrid conferences and events.
- Connected through HDMI/SDI.
2. Presentation Laptop Input
This laptop provides:
- PowerPoint
- Keynote
- Videos
- PDFs
- Live demonstrations
Connected using HDMI.
3. Document Camera Input (Optional)
Used for
- Product demonstrations
- Handwritten notes
- Physical documents
- Books
- Small objects
Connected via HDMI or USB.
2. Audio Inputs
Audio comes from several sources.
Examples include:
- Wireless handheld microphones
- Wireless lapel microphones
- Wireless Headset microphones
- Podium Microphones
- Laptop for Music playback
These signals enter the Audio Mixer using XLR or Line Input.
3. Audio Mixer
The audio mixer combines every sound source.
It performs:
- Mixing
- Volume balancing
- Equalization (EQ)
- Compression
- Noise Gate
- Delay
- Monitoring
From here:
- One output goes to the PA System
- Another output goes into vMix
This keeps both audiences hearing clean audio.
4. Headphones
The sound and streaming engineer monitors audio using headphones.
This helps detect:
- Noise
- Echo
- Distortion
- Microphone issues
- Feedback
before the audience hears them.
5. Amplifier / Audio System
The mixer sends audio to the amplifier.
The amplifier powers:
- PA Speakers
- Stage monitors
This audio is only for the people inside the venue.
6. vMix Production System (Center)
This is the heart of the entire setup.
Every input reaches vMix.
It receives:
- Camera 1
- Camera 2
- Camera 3
- Presentation Laptop
- Document Camera
- Mixed Audio
Inside vMix, everything is switched together into one professional program.
vMix Production Features
The diagram highlights several built-in capabilities.
Switching
Instantly switch between:
- Camera 1
- Camera 2
- Camera 3
- Presentation
without changing physical cables.
Graphics / Titles
Add:
- Speaker names
- Event logo
- Sponsor logos
- Countdown timers
- Lower banners
Lower Thirds
Professional captions showing:
- Speaker name
- Company
- Designation
Example:
John Smith
CEO
ABC Corporation
Picture-in-Picture / Split Screen
Display:
- Speaker + Presentation
- Two speakers
- Panel discussion
simultaneously.
Transitions
Smooth transitions such as:
- Fade
- Cut
- Wipe
- Zoom
- Slide
between sources.
Audio Mixer
vMix also includes an internal mixer to adjust:
- Microphones
- Music
- AV Audio
independently.
Recording
vMix records the entire production locally in high quality.
Common format:
- MP4
Streaming
vMix stream directly to:
NDI Support
Video can be shared over the local network using NDI.
This allows additional computers to receive video.
Instant Replay
Useful mainly for:
- Sports
- Conferences
- Award ceremonies
to replay important moments.
7. Program Feed to Facebook (Green Arrow)
Once production is complete, vMix sends one final Program Feed sending to Facebook
Instead of remote attendees seeing raw camera feeds, they see the professionally mixed output, which may include:
- Camera switching
- Presentation slides
- Graphics
- Speaker titles
- Picture-in-picture layouts
- Videos
This creates a broadcast-quality experience for online participants.
8. Remote Audience (Joining Facebook Live)
Remote attendees join the YouTube Live and receive:
- Professional video from vMix
- Mixed audio
- Presentations
- Graphics and branding
They experience the event as a polished live broadcast.
9. Recording
At the same time, vMix and all cameras records the event locally.
Benefits include:
- Backup copy
- On-demand viewing
- Editing later
- Uploading to YouTube or other platforms
Recording does not interfere with the live stream.
10. Program Output to Venue
The blue line labeled Program Output (HDMI/SDI) carries the final mixed video from vMix to the venue’s display system.
This output is typically connected to:
- LED video walls
- Projectors
- Confidence monitors
- Stage displays
The in-person audience sees the same polished program that online viewers receive.
11. In-Person Audience
People attending physically experience:
- Live speakers
- Large presentation screens
- Camera close-ups
- Videos
- Graphics
- Professional audio through the PA system
Because vMix controls the on-site screens and mixing program feed for Facebook Live, everyone sees synchronized content.
